| Rated power supply voltage | AC230V |
| Maximum voltage adjustment range | 230V~300V |
| Minimum voltage adjustment range | 120V~210V |
| Range of adjustment of the maximum curre | 1A~63A |
| Maximum action time | <275V: 0,1s, ≥275V: 0,02s |
| Protection | IP20 |
| Electrical life | 100000 times |
| Mechanical life | 1000000 times |
| Product Keywords | under voltage,voltage and current display relay,under over voltage circuit breaker |
Description

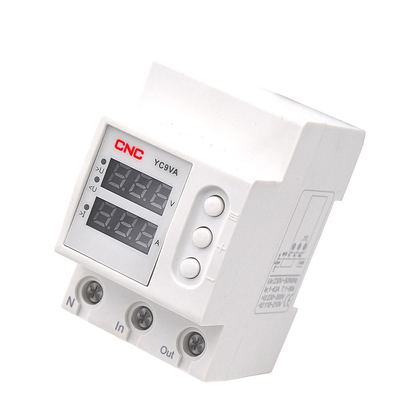

YC9VA voltage and current display relay is a microprocessor-based voltage monitoring device for single-phase AC networks toprotect electrical equipment from surge voltage. The device analyzes the main voltage and displays its current value on a digitalindicator. Load is switched by electromagnetic relay. The user can set the current voltage value and delay time through the button.The value is stored in non-volatile memory. Aluminum wires and copper wires can be used for connection.
Application
YC9VA voltage and current display relay used in administrative, industrial and residential buildings and has the function of protectingsingle-phase lines:
Surge protection;
Undervoltage protection;
Overvoltage protection;
Working under voltmeter mode.
CNC OR OEM 1P 180UNITS/CTN 2P 90UNITS/CTN 3P 60UNITS/CTN 4P 45UNITS/CTN 42*26.5*23.4 cm 18kg/ctn
7-18 days after payment ----delivery date should be decided according to production season and order quantity.
The CNC Electric Group Co,.Ltd ,specialized in manufacturing industrial electrical appliance.
CNC holds assets with more than 5 billion RMB,and the plant area amounts to 0.25 million square meters,with over 10,000 emplyees.
CNC Electric owns 15 exclusive distributors .sell over 100 countries CNC Deliver Power For Better Life！
